Mounting bracket required when installed on J-400 series (6000-514)

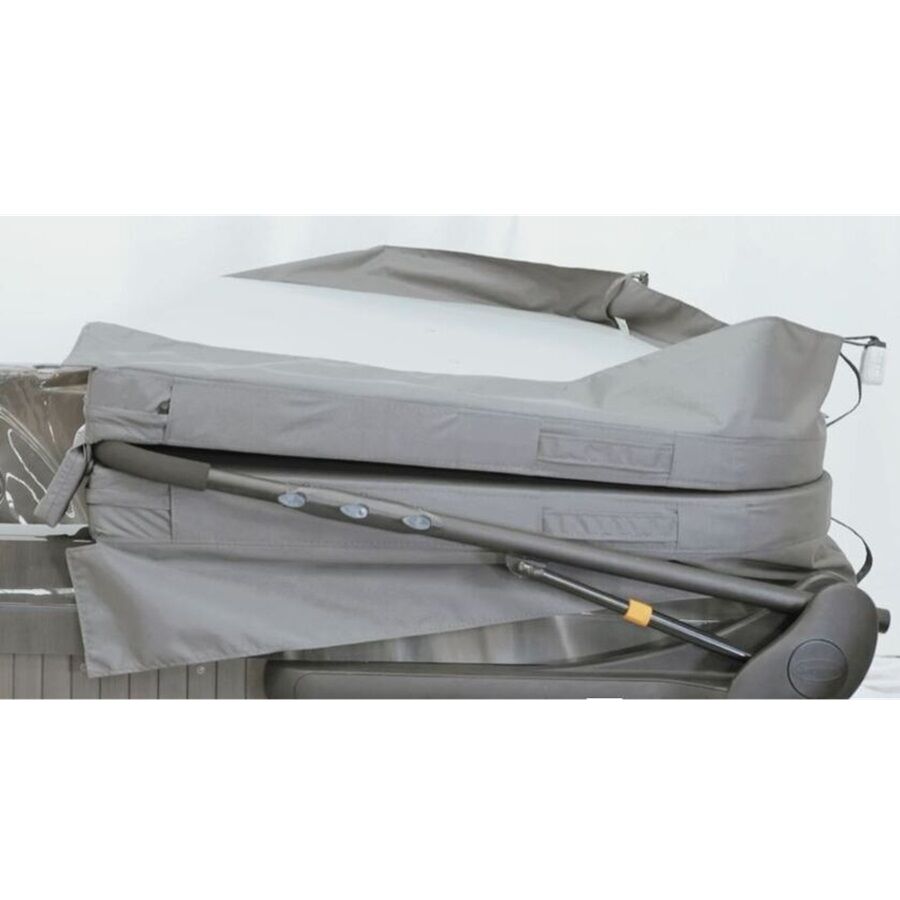

The cover lifter should be mounted so the cover lifts up on the backside of the spa. (The side that does not have the touchpad).There are multiple reasons for this.
1. On a J-400 in particular, the spa is raised at the back and has a different corner radius, so the cover can only go one way. (See image below)
2. The touchpad is at the front, so you don't want the cover blocking access to the touchpad when lifted up.
3. The access panel comes off at the front for maintenance, so you don't want to have to remove the cover lifter for maintenance access.
Details:
Manufacturer: Jacuzzi®
Model / JHT#: 6473-238
Sold individually
This product is subject to Equipotential Bonding compliance in accordance with the Australian and New Zealand Standards (AS/NZS 3000: 2018 Electrical Installations) otherwise known as the Wiring Rules.
If this product is installed within 1.25m of a body of water including spa, swim spa or pool, then Equipotential Bonding MUST be performed by a licensed electrical person prior to the product being used. This is a mandatory requirement. As the purchaser of this product, you are responsible for ensuring compliance with this requirement at your own expense.
Refer to the guide below for more information.
SKU | 6473-238 |
Model # | 6473-236 |
Brand | Jacuzzi® Spas |
Shipping Weight | 9.0000kg |
Shipping Width | 0.550m |
Shipping Height | 0.100m |
Shipping Length | 1.150m |
Shipping Cubic | 0.063250000m3 |
