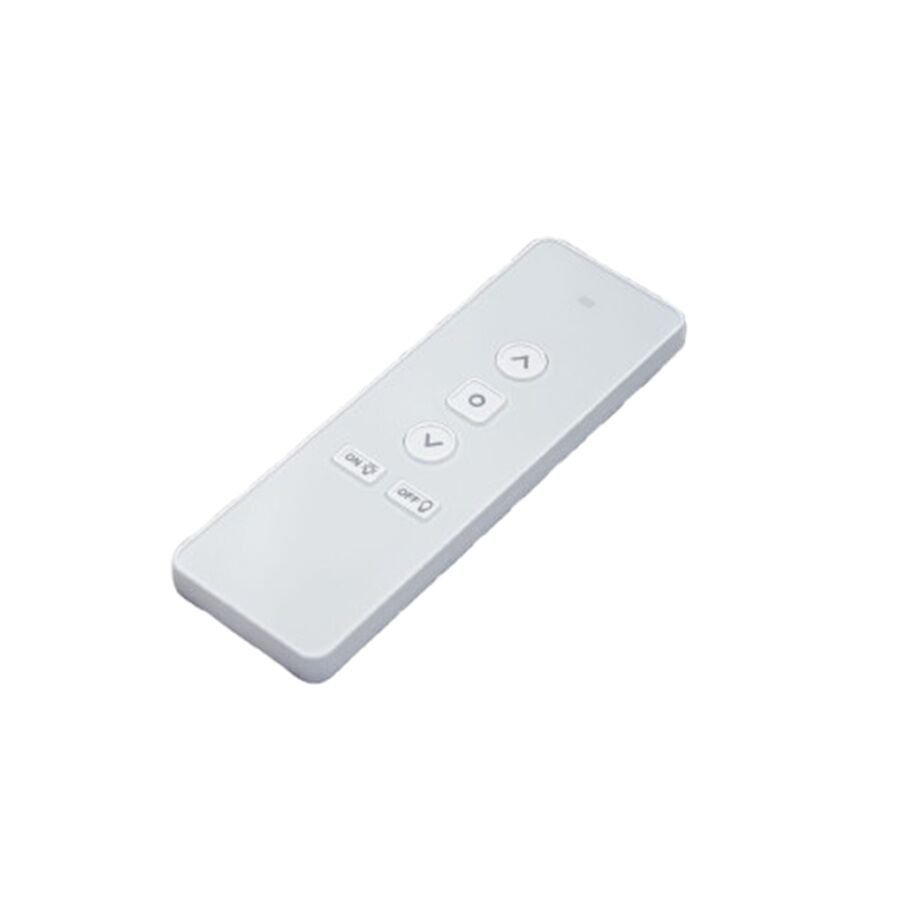

Remote Control Vortex Pergolas™

Command shade and airflow with ease—the Vortex Pergolas™ Remote Control gives you effortless, one-touch pergola control.

Product Features

• Convenient Control – operates the opening, closing, and pausing of the louvres at your chosen angle
• Battery Powered – uses a single CR2032 battery for long-lasting performance
• Battery Included – one CR2032 battery comes with the remote for immediate use
• Easy Operation – provides smooth, precise control of the motorized Vortex Pergola™ system
• Used for operating pergola motor via the reciever
• One remote required per motor/per bay
• Requires 1 CR2032 battery (1 included with purchase)
• Motorized pergola applicable

To reprogram the remote control to the current receiver, simply follow these steps:

1.) If the pergola comes with two or more motors for the two or more louvre bays, ensure when reprogramming one bay that the power is off for the other bay to avoid interference.
We recommend starting by performing a "Code Deleting" process

• Step 1: Cut off the power and then reconnect the power.
• Step 2: Start the following steps within 15 seconds of reconnecting the power:
• Step 3: Press and hold the middle button on the receiver for about 5 seconds until the tip light (blue) at the top begins to flash continuously.
• Step 4: Press the "up" button on the remote control.
• Step 5: When the receiver's tip light (blue) flashes 3 times, the remote control is successfully paired and can be used to control the motor.

2.) Once the code is deleted, follow these steps to reprogram the remote control:

• Step 1: Power on the system for Bay #1.
• Step 2: Follow the programming steps as outlined in the instructions.
• Step 3: Complete the programming for Bay #1, ensuring it is functioning correctly.
• Step 4: Once Bay #1 is programmed, power off the system before reprogramming Bay #2.

By ensuring the power is off when switching between bays, you can prevent interference and successfully program both motors.

For use in Vortex Pergolas™ models 2021-2025

• 3300 - 1 remote
• 3400 - 2 remotes for double bay. 1 remote for single bay
• 4600 - 2 remotes
• 4800 - 4 remotes

Specifications

• Model: 201047
• Manufacturer:  Vortex®
