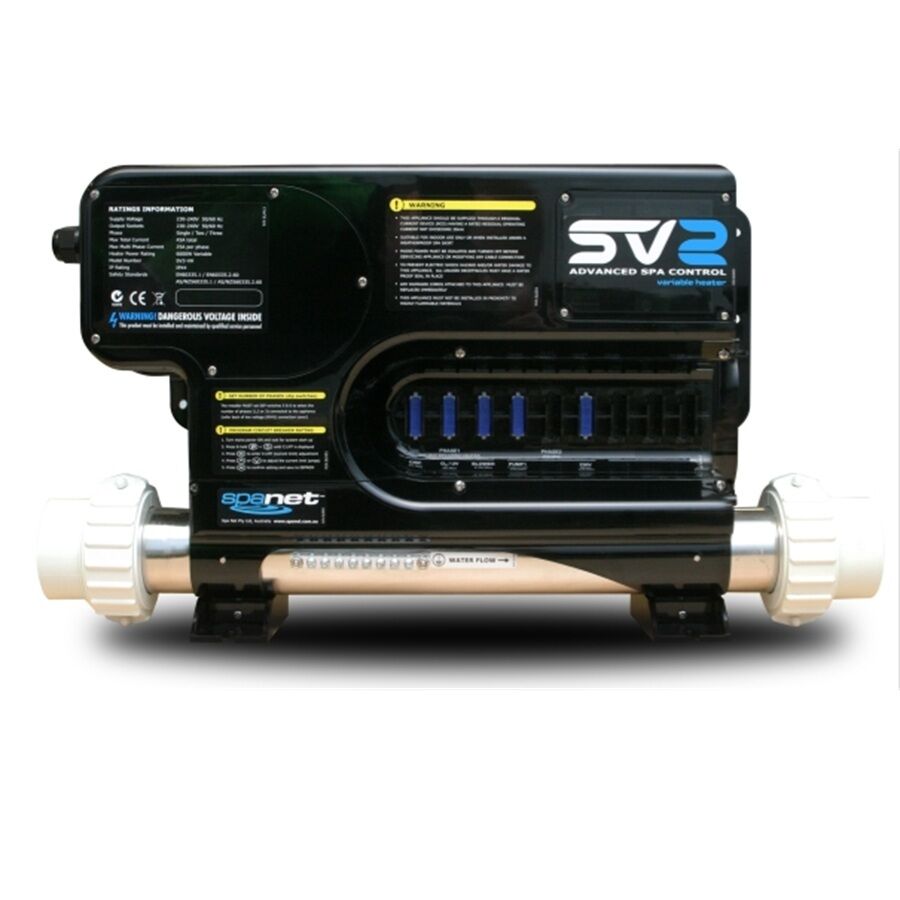

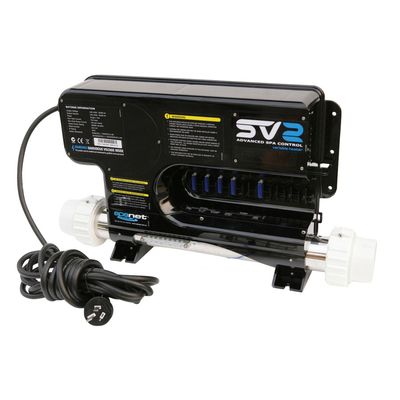

SpaNet® SV2  Spa Pool Controller Kit Includes TouchPad

A compact, reliable control system for effortless spa management.

Product Features

• Heat Pump Ready
• SV SmartLink WiFi remote access / SV SmartSTREAM Bluetooth audio package compatible
• Supports 1 x 2-speed pump or 1 x circ + 1 x 1-speed pump
• Blower / Ozone/UV / LED Lighting
• 3.0kW Variable heater
• Used on Vortex, Oasis, Arcadia, O2, Monarch, Sapphire, Heritage, and many other spas
• The PowerSMART SV2 spa control sets a new standard in equipment levels for small to medium-sized spas
• Designed for operating 1 or 2 pump* spas, the SV2 features Smart Variable Heater technology with Dynamic Thermal Tuning
• Complete heat pump interface for cost-effective heating and cooling of your spa
• PowerSAVE technology for lower daily operating costs as well as a host of industry-leading features and flexible configuration options
• Coupled with an attractive, simple to use touch pad with a large, easy to read backlit display
• Designed for simple, reliable control of spa functions
• Compact and efficient system ideal for spa upgrades or replacements

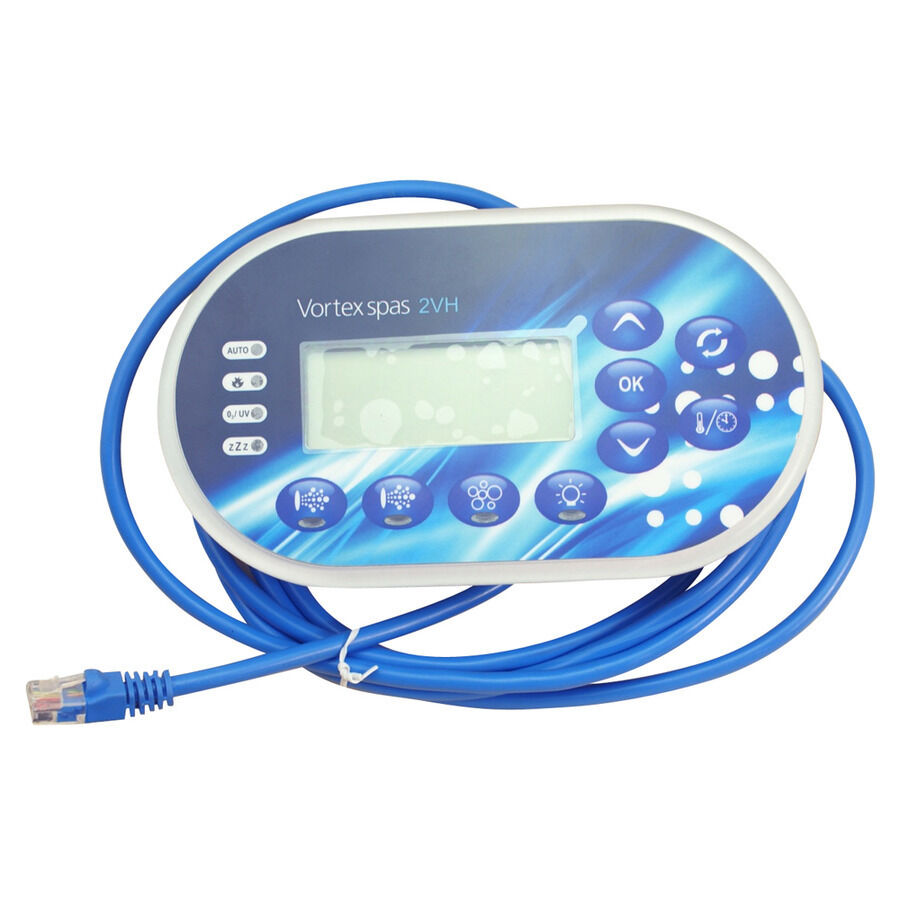

• TouchPad provides user-friendly control of temperature and settings
• Built with SpaNet® quality for dependable spa performance.

TOUCHPAD PROGRAMMABLE FILTRATION: Smart touchpad menus easy-set time clock filtration cycle hours per day with flexible sleep settings to save you money.​

​GELL FILLED KEYPAD: Unlike many keypads on the market, the SV2 spa touchpad

SMART VARIABLE HEATER: Larger heater for fast heat recovery and reduces heat loss while spa pool is in use; automatically alter its output to suit the available power when accessory loads are operating or reduce to lower Kw rating for circuits with minimum power.

HEAT PUMP INTERFACE: Spa heating/cooling control/heat pump functions controlled by side touchpad backed with solid diagnostics

MULTI PHASE CAPABLE: Connection ready to single or two-phase power supplies up to 20A

ONE-TOUCH SANITISE CYCLE: Single button 20-minute water sanitisation cycle to immediately engages the ozone/uv, filtration pump & blower to purge plumbing lines and refresh water quality after spa use. Easy to use, with large, backlit display and buttons

COLOURSHADZ LED LIGHTING EFFECTS:Advanced lighting software provides choice of colour mixing mode, effect transition speed and brightness adjustment; This feature is only available when SpaNet lighting is used

100% SEALED CONTROL ENCLOSURE: Sealed to prevent water or insect ingress

DYNAMIC THERMAL TUNING: Adapt and tune itself to spa pool in the environment to reduce demand heat cycling and operating costs

OPTICAL WATER SENSING Provides trouble-free water detection system eliminating pressure and flow switch maintenance problems

AUTOMATIC DAILY PURGE: Daily automatic sanitising cycle set at 10-minute cycle to operate pumps & blower to purge plumbing lines while filtering

COMFORT SET AIR BLOWER CONTROLSpa side touchpad transforms a single-speed blower into a variable speed to manually adjust air massage desired comfort level.

Please note that this controller requires AMP connectors. You might need to purchase new leads if your equipment does not have leads with AMP connectors. These are not included. See these leads:

AMP Blower Lead

Single Speed Pump Lead

Twp Speed Pump Lead

UV Ozone Splitter. This is required if you are using UV and ozone. The SV2 only has one UV/Ozone port.

Specifications

• Power: 1 phase 230-240v AC / 3 phase 400-415v AC  / 50/60Hz / MAX total current 20amp or 16amp per phase / 1 x 230V dedicated mains outlet for accessories
• Heater: Variable spa heater up to 3kW
• Blower: Variable Speed / Ramping Air Blower
• Lighting: Light x 1 (needs to be a Spanet LED light)
• Pump Configurations: 1 X 1-spd jet pump / 1 x 2-spd jet pump / 1 x circ pump + 1 x 1-spd jet pump / 1 x circ pump + 1 x 2-spd jet pump
• Model: SN-SV2-VH-PK
• Manufacturer: SpaNet®​

To be fitted by a qualified electrician, pool, or spa technician only. Spa World will not be liable for incorrect installation, damage, or injury caused by an unqualified person installing this part.

Important Electrical Notice:
